6、高动态特性
|

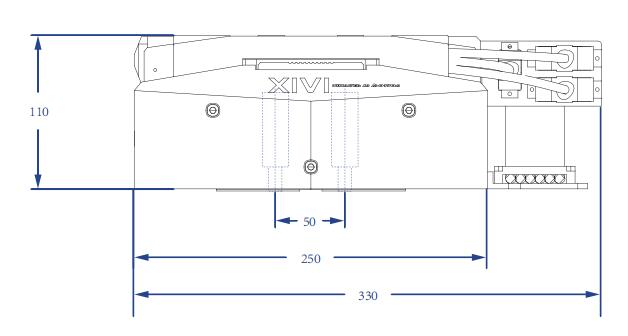

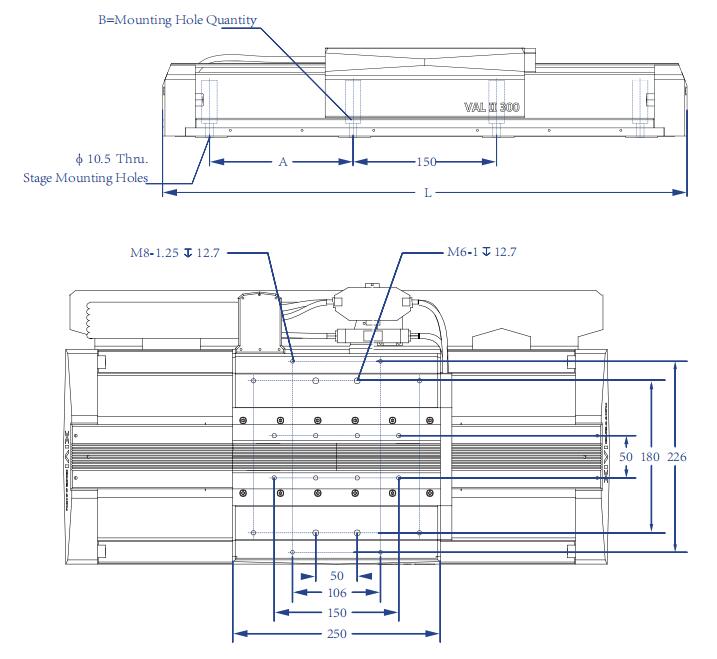

Basic Model |
VALII100 |
VALII200 |
VALII300 |
VALII400 |
VALII500 |
VALII600 |
VALII800 |
VALII1000 |
|
|
Total Travel |
100 mm |
200 mm |
300 mm |
400 mm |
500 mm |
600 mm |
800 mm |
1000mm |
|
|
Motor Type |
Brushless Linear Sevomotor |
||||||||
|
Feedback |
Noncontact Linear Encoder or Laser Interferometer |
||||||||
|
Encoder |
Noncontact Linear Encoder |
0.001 µm - 0.1 µm |
|||||||
|
Laser Interferometer |
0.39 nm - 79 nm |
||||||||
|
Maximum Velocity (no-load) |
2 m/s |
||||||||
|
Peak Acceleration（no-load） |
20 m/s2 |
||||||||
|
Maximum Load Capacity |
50 kg |
||||||||
|
Accuracy |
Noncontact Linear Encoder(with error compensation,temperature stabilized within 0.2°C） |
±0.3 µm |
±0.4 µm |
±0.6 µm |
±1 µm |
||||
|
Repeatability |
±0.2 µm |
±0.3 µm |
±0.4 µm |
||||||
|
Straightness & Flatness |
±0.25 µm |
±0.4 µm |
±0.75 µm |
±1.5 µm |
±2.0 µm |
±3.0 µm |
±4.0 µm |
±5.0 µm |
|
|
Pitch/Yaw |
1 arc sec |
2 arc sec |
3 arc sec |
4 arc sec |
5 arc sec |
6 arc sec |
8 arc sec |
10 arc sec |
|
|
Velocity ripple |
0.1% @ 500 mm/s |
||||||||
|
Minimum incremental motion |
10 nm |
||||||||
|
Nominal Stage Mass |
30 kg |
35 kg |
40 kg |
45 kg |
50 kg |
55 kg |
65 kg |
75 kg |
|
|
Moving Mass |
8.5 kg |
||||||||
|
Operating Pressure |
0.5 MPa ± 0.05 MPa |
||||||||
|
Air Consumption |
0.8 SCFM |
||||||||
|
Moving Mass |
8.5 kg |
||||||||
|
Material |
Aluminum |
||||||||
|
MTBF |
20,000 hrs |
||||||||
